Ammonia Unit Cooler

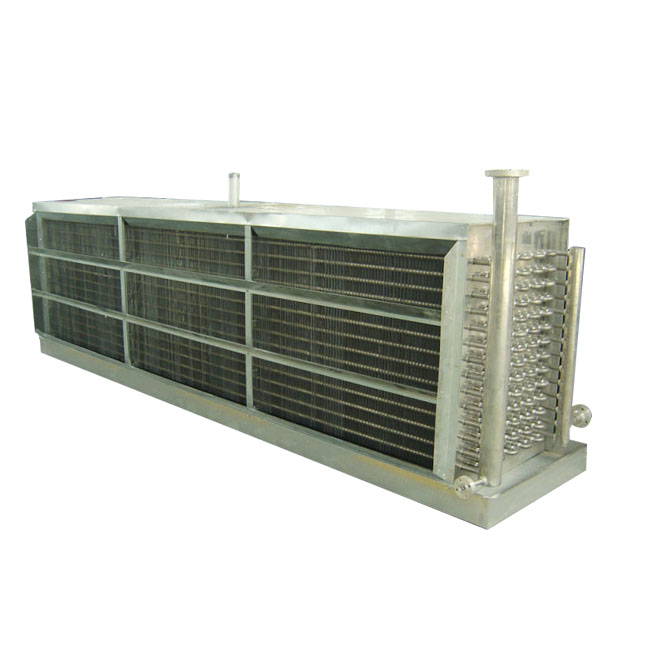

Ammonia Evaporator Unit/Air Cooler
  • Ammonia Evaporator Unit/Air Cooler
  • Ammonia Evaporator Unit/Air Cooler
  • Ammonia Evaporator Unit/Air Cooler
  • Ammonia Evaporator Unit/Air Cooler

Ammonia Evaporator Unit/Air Cooler

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference
1. All-aluminum evaporator
High-strength aluminum alloy tubes and large sets of aluminum alloy fins are precisely expanded and expanded by imported tube expanders, and the heat transfer coefficient is increased by 35%.
Airtightness test: multiple 25kg / cm2 pressure tests, and 24 hours pressure test.
The end plate tube hole of the fixed aluminum tube is stamped and flanged by the die to reduce the wear of the aluminum tube by the tube plate.
The large aluminum alloy fin design is not easy to frost, easy and clean frost.
Fin spacing: 8mm, 10mm, 12mm, 15mm and 10mm combination.
Defrosting method: water frosting can also be combined with hot ammonia and water frosting.
A wind deflector is installed on the back of the air inlet to prevent water splashing during frosting and make the air inlet even.

2. Axial fan
Low-energy-saving and energy-saving axial fan, aluminum fan.
It is equipped with a closed-type three-proof motor for cold storage (IP55 grade), loaded with imported bearings, and filled with low-temperature grease.
The air outlet guide ring of the fan is designed with a streamline bell mouth, which is hydraulically stretched and formed by special equipment at one time, reducing wind resistance and vortex, and making the range longer.
An electric heating belt can be added to the diversion ring of the fan outlet.
Optional imported external rotor fan.

3. Unit shell
The standard configuration is milky white sprayed steel plate, but also hot-dip galvanized plate or stainless steel.
Imported CNC equipment and molds are used to complete the product's beveling, punching, tube expansion and unit casing forming.
According to the requirements of customers, we can customize the design of different shapes and different structures of air coolers (such as operating noise, range, cooling area, etc.).
A single unit can be made into a 1500m2 evaporation area.

DAL all aluminum unit cooler technical parameter table

The spacing of aluminum fins is 8mm, suitable for high temperature storage and cooling room at 5 ℃ ~ -15 ℃

Model

Evaporation area㎡

Nominal cooling capacity Kw
△tm=10℃﹑to=-10℃)

Tube volume L

Single axial fan(380V/3/50HZ)

Quantity(pcs)

Weight(Kg)

Specification

Power Kw

Air volume
(m³/h)

Range(m)

DAL100-8-502

100

18.25

30

ɸ500

0.75

7500

18

2

350

DAL150-8-602

150

27.38

44.3

ɸ600

1.1

10000

25

2

450

DAL200-8-602

200

36.5

59.1

ɸ600

1.1

10000

25

2

500

DAL250-8-702

250

46.8

73.5

ɸ700

1.5

16000

30

2

600

DAL300-8-603

300

55.9

88

ɸ600

1.1

10000

25

3

700

DAL350-8-603

350

66.4

102

ɸ600

1.1

10000

35

3

800

DAL400-8-703

400

72.8

128

ɸ700

1.5

16000

30

3

900

DAL500-8-704

500

93.5

151

ɸ700

1.5

16000

30

4

1100


Aluminum fin spacing 10mm, suitable for cold storage and cooling room at -18 ℃

Model

Evaporation area㎡

Nominal cooling capacity Kw
(△tm=10℃﹑to=-10℃)

Tube volume L

Single axial fan(380V/3/50HZ)

Quantity(pcs)

Weight(Kg)

Specification

Power Kw

Air volume
(m³/h)

Range(m)

DAL100-10-502

100

18.28

37

ɸ500

0.75

7500

18

2

400

DAL150-10-602

150

27.42

64

ɸ600

1.1

10000

25

2

500

DAL200-10-602

200

36.62

70.3

ɸ600

1.1

10000

25

2

600

DAL250-10-603

250

48.80

90

ɸ600

1.1

10000

25

3

700

DAL300-10-603

300

58.1

107

ɸ600

1.1

10000

25

3

800

DAL350-10-703

350

66.3

125

ɸ700

1.5

16000

30

3

900

DAL400-10-703

400

72.66

141.7

ɸ700

1.5

16000

30

3

1000

DAL500-10-704

500

93.2

179

ɸ700

1.5

16000

30

4

1200


Aluminum fin spacing is 12mm, suitable for cold storage at -18 ℃ ~ -23 ℃

Model

Evaporation area㎡

Nominal cooling capacity Kw
(△tm=10℃﹑to=-10℃)

Tube volume L

Single axial fan(380V/3/50HZ)

Quantity(pcs)

Weight(Kg)

Specification

Power Kw

Air volume
(m³/h)

Range(m)

DAL100-12-502

100

18.30

42.6

ɸ500

0.75

7500

18

2

450

DAL150-12-602

150

27.48

64

ɸ600

1.1

10000

25

2

550

DAL200-12-702

200

36.8

83

ɸ700

1.5

16000

30

2

650

DAL250-12-603

250

45.9

105.4

ɸ600

1.1

10000

25

3

750

DAL300-12-703

300

55.2

124.7

ɸ700

1.5

16000

25

3

900

DAL350-12-703

350

64.3

145.5

ɸ700

1.1

16000

25

3

1000

DAL400-12-704

400

73.2

167.8

ɸ700

1.5

16000

25

4

1150


The combination of aluminum fin spacing 15 and 10mm, suitable for cold storage and freezing room below -23 ℃

Model

Evaporation area㎡

Nominal cooling capacity Kw
(△tm=10℃﹑to=-10℃)

Tube volume L

Single axial fan(380V/3/50HZ)

Quantity(pcs)

Weight(Kg)

Specification

Power Kw

Air volume
(m³/h)

Range(m)

DAL100-15/10-502

100

18.32

40

ɸ500

0.75

7500

18

2

400

DAL150-15/10-602

150

27.5

60

ɸ600

1.1

10000

25

2

500

DAL200-15/10-702

200

37

80

ɸ700

1.5

16000

30

2

650

DAL250-15/10-603

250

46

100

ɸ600

1.1

10000

25

3

750

DAL300-15/10-703

300

55.5

116

ɸ700

1.5

16000

30

3

900

DAL350-15/10-703

350

65

138

ɸ700

1.5

16000

30

3

1050

DAL400-15/10-703

400

73.5

156.7

ɸ700

1.5

16000

30

3

1200

DAL500-15/10-704

500

91.8

194

ɸ700

1.5

16000

30

4

1300


DAL all aluminum unit cooler dimensions table

Aluminum fin spacing 8mm

Model

A

L

B

C

W

ɸ

N

Liquid supply  R1

Gas return  R2

Water supply  D1

Drain D2

DAL100-8-502W

1440

1690

750

1025

790

ɸ500

4

ɸ38

ɸ57

1"

2.5"

DAL150-8-602W

1790

2040

750

1175

790

ɸ600

6

ɸ38

ɸ57

1"

2.5"

DAL200-8-602W

1790

2040

880

1175

920

ɸ600

6

ɸ38

ɸ57

2"

3"

DAL250-8-702W

2240

2490

880

1175

920

ɸ700

6

ɸ38

ɸ57

2"

3"

DAL300-8-603W

2690

2940

880

1175

920

ɸ600

8

ɸ57

ɸ76

2"

3"

DAL350-8-603W

3140

3390

880

1175

920

ɸ700

8

ɸ57

ɸ76

2"

3"

DAL400-8-703W

3640

3890

880

1175

920

ɸ700

8

ɸ57

ɸ76

2.5"

4"

DAL500-8-704W

3990

4200

880

1325

920

ɸ700

10

ɸ57

ɸ76

2.5"

4"

Aluminum fin spacing 10mm

Model

A

L

B

C

W

ɸ

N

Liquid supply R1

Gas return R2

Water supply D1

Drain D2

DAL100-10-502W

1790

2040

750

1025

790

ɸ500

6

ɸ38

ɸ57

1"

2.5"

DAL150-10-602W

1940

2190

880

1025

920

ɸ600

6

ɸ38

ɸ57

1"

2.5"

DAL200-10-602W

2140

2390

880

1175

920

ɸ600

6

ɸ38

ɸ57

2"

3"

DAL250-10-603W

2740

2990

880

1175

920

ɸ600

8

ɸ38

ɸ57

2"

3"

DAL300-10-603W

3290

3540

880

1175

920

ɸ600

8

ɸ57

ɸ76

2"

3"

DAL350-10-703W

3290

3540

880

1325

920

ɸ700

8

ɸ57

ɸ76

2"

3"

DAL400-10-703W

3740

3990

880

1325

920

ɸ700

8

ɸ57

ɸ76

2.5"

4"

DAL500-10-704W

4740

4990

880

1325

920

ɸ700

10

ɸ57

ɸ76

2.5"

4"

Aluminum fin spacing 12mm

Model

A

L

B

C

W

ɸ

N

Liquid supply R1

Gas return R2

Water supply D1

Drain D2

DAL100-12-502W

1540

1790

880

1025

920

ɸ500

6

ɸ38

ɸ57

1"

2.5"

DAL150-12-602W

1940

2190

880

1175

920

ɸ600

6

ɸ38

ɸ57

1"

2.5"

DAL200-12-702W

2540

2790

880

1175

920

ɸ700

6

ɸ38

ɸ57

2"

3"

DAL250-12-603W

3240

3490

880

1175

920

ɸ600

6

ɸ38

ɸ57

2"

3"

DAL300-12-703W

3840

4090

880

1175

920

ɸ700

8

ɸ57

ɸ76

2"

3"

DAL350-12-703W

3840

4090

880

1325

920

ɸ700

8

ɸ57

ɸ76

2.5"

4"

DAL400-12-704W

4440

4690

880

1325

920

ɸ700

10

ɸ57

ɸ76

2.5"

4"

Combination of aluminum fin spacing 15mm and 10mm

Model

A

L

B

C

W

ɸ

N

Liquid supply R1

Gas return  R2

Water supply D1

Drain D2

DAL100-15/10-502W

1440

1690

880

1025

920

ɸ500

6

ɸ38

ɸ57

1"

2"

DAL150-15/10-602W

1790

2040

880

1175

920

ɸ600

6

ɸ38

ɸ57

1"

2"

DAL200-15/10-702W

2440

2690

880

1175

920

ɸ700

6

ɸ38

ɸ57

2"

3"

DAL250-15/10-603W

3040

3290

880

1175

920

ɸ600

8

ɸ38

ɸ57

2"

3"

DAL300-15/10-703W

3040

3290

880

1325

920

ɸ700

8

ɸ57

ɸ76

2"

3"

DAL350-15/10-703W

3640

3890

880

1325

920

ɸ700

8

ɸ57

ɸ76

2.5"

4"

DAL400-15/10-703W

4140

4390

880

1325

920

ɸ700

8

ɸ57

ɸ76

2.5"

4"

DAL500-15/10-704W

5140

5390

880

1325

920

ɸ700

10

ɸ57

ɸ76

2.5"

4"

DAL series all aluminum cooler (evaporator) is used in various types of high and low temperature cold storages, cooling rooms, freezing rooms, with a long range of air supply.
