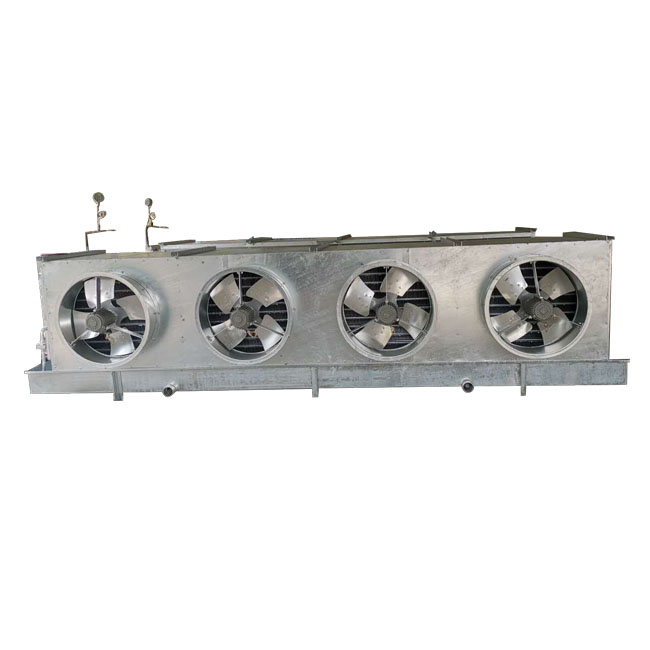

Ammonia Unit Cooler
Ammonia Unit Cooler(Hot-dip Zinc Air Cooler)
  • Ammonia Unit Cooler(Hot-dip Zinc Air Cooler)
  • Ammonia Unit Cooler(Hot-dip Zinc Air Cooler)
  • Ammonia Unit Cooler(Hot-dip Zinc Air Cooler)
  • Ammonia Unit Cooler(Hot-dip Zinc Air Cooler)

Ammonia Unit Cooler(Hot-dip Zinc Air Cooler)

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference
1. Applicable to all types of high and low temperature cold storage, cooling room, freezing room, and long range of air supply.

2. Integral hot-dip zinc evaporator
Adopt O.D. 22 seamless steel tube with large diameter steel fins. After forming, the whole hot dip zinc in the high temperature pure zinc tank, the steel tube and the fins are integrated, the heat transfer effect is good, at the same time, it is not easy to corrode, the use is safer and more reliable, the life Longer.
Air tightness test: multiple 25kgf / cm2 pressure test, and after 24 hours pressure test.
Using large steel fins, it is not easy to frost, the defrost is cleaner, faster and more thorough.
Using large steel fins and integral hot-dip zinc processing technology, the heat transfer coefficient is greatly improved, and the cooling output is increased by 30% compared with ordinary coolers.
Fin spacing: 8mm, 12mm, 15mm, 15mm and 12mm combination.
Defrosting method: hot fluorinated cream, water flushing cream.

3. Axial fan
Low energy consumption, low noise and energy saving axial fan, aluminum fan blade.
Supporting cold storage special low-temperature enclosed three-proof motor (IP55). Equipped with imported bearings and filled with low-temperature grease.
A belt type electric heating belt can be added outside the fan outlet guide ring.
Optional imported external rotor axial fan

4. Unit shell
The standard configuration is milky white plastic sprayed plate, but also hot-dip galvanized plate or stainless steel plate.
When defrosting with hot ammonia, the water tray is provided with a heat insulation interlayer, and the hot ammonia heating tube group is pre-buried, so the defrosting is clean, fast and thorough
When the water is frosting, install the wind deflector on the air inlet to prevent the water from splashing during frosting.

5. The imported CNC equipment and molds are used to complete the punching, dehorning and shell forming of the product.

6. Coolers of different shapes and structures can be customized according to customer requirements (such as cooling area, range, noise, etc.) and size. A single unit can be made to 1500m2.

Technical parameter table

The steel fin spacing is 8mm, suitable for cold storage and rapid cooling room with storage temperature above -18 ℃

Model

Evaporation area ㎡

Nominal cooling capacity Kw
（△tm=10℃﹑to=-10℃）

Tube content L

Single axial fan（380V/3/50HZ）

Number of fans（pcs）

Weight（Kg）

Specification

Power Kw

Air volume
（m³/h）

Range（m）

DZN20-8-401

20

3.55

5.2

ɸ400

0.2

3000

12

1

250

DZN40-8-402

40

7.1

10.4

ɸ400

0.2

3000

12

2

350

DZN60-8-403

60

10.66

15.6

ɸ400

0.2

3000

12

3

450

DZN80-8-404

80

14.22

20.4

ɸ400

0.2

3000

12

4

550

DZN100-8-502

100

18.45

25.6

ɸ500

0.75

7500

18

2

650

DZN125-8-602

125

23.55

32.6

ɸ600

1.1

10000

25

2

800

DZN150-8-602

150

28.54

40

ɸ600

1.1

10000

25

2

1000

DZN200-8-602

200

36.8

52.3

ɸ600

1.1

10000

25

2

1200

DZN250-8-603

250

47.1

64

ɸ600

1.1

10000

25

3

1400

DZN300-8-603

300

57.05

78.2

ɸ600

1.1

10000

25

3

1600

DZN350-8-703

350

66.6

91.6

ɸ700

1.5

16000

30

3

1800

DZN400-8-703

400

73.8

105

ɸ700

1.5

16000

30

3

2000

DZN450-8-703

450

84.26

116

ɸ700

1.5

16000

30

3

2300

DZN500-8-704

500

94.2

132

ɸ700

1.5

16000

30

4

2550

Steel fin spacing 12mm, suitable for -18 ℃ ～ -23 ℃ cold storage

Model

Evaporation area ㎡

Nominal cooling capacity Kw
（△tm=10℃﹑to=-10℃）

Tube content L

Single axial fan（380V/3/50HZ）

Number of fans（pcs）

Weight（Kg）

Specification

PowerKw

Air volume
（m³/h）

Range（m）

DZN15-12-401

15

3.56

7.7

ɸ400

0.2

3000

12

1

300

DZN30-12-402

30

7.11

15.4

ɸ400

0.2

3000

12

2

400

DZN45-12-403

45

10.68

23.1

ɸ400

0.2

3000

12

3

500

DZN60-12-404

60

14.20

31

ɸ400

0.2

3000

12

4

600

DZN100-12-502

100

18.42

25.6

ɸ500

0.75

7500

18

2

700

DZN125-12-602

125

23.48

38.5

ɸ600

1.1

10000

25

2

900

DZN150-12-602

150

28.36

56.2

ɸ600

1.1

10000

25

2

1100

DZN175-12-702

175

32.22

65.6

ɸ700

1.5

10000

25

2

1200

DZN200-12-702

200

36.72

77.4

ɸ700

1.5

16000

30

2

1400

DZN250-12-603

250

47.02

95.4

ɸ600

1.1

10000

25

3

1550

DZN300-12-703

300

57.1

113.5

ɸ700

1.5

16000

30

3

1800

DZN350-12-703

350

66.42

130

ɸ700

1.5

16000

30

3

2050

DZN400-12-704

400

73.6

149.5

ɸ700

1.5

16000

30

4

2300

DZN450-12-704

450

84.1

166

ɸ700

1.5

16000

30

4

2500

The combination of steel fin spacing 15 and 12mm is suitable for cold storage and freezing storage below -23 ℃

Model

Evaporation area ㎡

Nominal cooling capacity Kw
（△tm=10℃﹑to=-10℃）

Tube content L

Single axial fan（380V/3/50HZ）

Number of fans（pcs）

Weight（Kg）

Specification

Power Kw

Air volume
（m³/h）

Range（m）

DZN75-15/12-601

75

13.8

37.4

ɸ600

1.1

10000

25

1

800

DZN100-15/12-701

100

18.38

41.5

ɸ700

1.5

16000

30

1

900

DZN150-15/12-602

150

28.3

62.5

ɸ600

1.1

10000

25

2

1300

DZN200-15/12-702

200

36.5

81.8

ɸ700

1.5

16000

30

2

1700

DZN250-15/12-702

250

49.8

98.7

ɸ700

1.5

16000

30

2

2000

DZN300-15/12-703

300

58.2

119.2

ɸ700

1.5

16000

30

3

2400

DZN350-15/12-703

350

66.2

140

ɸ700

1.5

16000

30

3

2700

DZN400-15/12-704

400

73.4

160

ɸ700

1.5

16000

30

4

3200

DZN450-15/12-704

450

83.8

177

ɸ700

1.5

16000

30

4

3500



Dimensions table

Steel fin spacing 8mm

Model

A

L

B

C

W

N

Hot ammonia frost

Water frost

D1

D2

D3

D5

D4

D5

DZN20-8-401

600

890

400

640

440

4

ɸ25

ɸ42

ɸ32

1"

1"

2.5"

DZN40-8-402

1160

1450

400

640

440

4

ɸ25

ɸ42

ɸ32

1"

1"

2.5"

DZN60-8-403

1720

2050

400

640

440

4

ɸ32

ɸ42

ɸ32

1.5"

1"

2.5"

DZN80-8-404

2280

2610

400

640

440

6

ɸ32

ɸ42

ɸ32

1.5"

1"

2.5"

DZN100-8-502

1590

1990

720

820

760

4

ɸ38

ɸ57

ɸ32

1.5"

1.5"

2.5"

DZN125-8-602

1690

2090

720

960

760

6

ɸ38

ɸ57

ɸ32

1.5"

1.5"

2.5"

DZN150-8-602

2040

2440

720

960

760

6

ɸ38

ɸ57

ɸ32

1.5"

1.5"

2.5"

DZN200-8-602

2040

2440

840

960

880

6

ɸ38

ɸ57

ɸ32

2"

2"

3"

DZN250-8-603

2540

2940

840

960

880

8

ɸ38

ɸ57

ɸ32

2"

2"

3"

DZN300-8-603

2580

2980

840

1100

880

8

ɸ38

ɸ57

ɸ42

2"

2"

3"

DZN350-8-703

3040

3440

840

1100

880

8

ɸ57

ɸ76

ɸ42

2"

2"

3"

DZN400-8-703

3460

3860

840

1100

880

8

ɸ57

ɸ76

ɸ42

3"

2.5"

4"

DZN450-8-703

3840

4240

840

1100

880

8

ɸ57

ɸ76

ɸ42

3"

2.5"

4"

DZN500-8-704

4340

4740

840

1100

880

10

ɸ57

ɸ76

ɸ42

3"

2.5"

4"


Steel fin spacing 12mm

Model

A

L

B

C

W

N

Hot ammonia frost

Water frost

D1

D2

D3

D5

D4

D5

DZN15-12-401

600

890

530

640

570

4

ɸ25

ɸ42

ɸ32

1"

1"

2.5"

DZN30-12-402

1160

1450

530

640

570

4

ɸ25

ɸ42

ɸ32

1"

1"

2.5"

DZN45-12-403

1720

2050

530

640

570

4

ɸ32

ɸ42

ɸ32

1.5"

1"

2.5"

DZN60-12-404

2280

2610

530

640

570

6

ɸ32

ɸ42

ɸ32

1.5"

1"

2.5"

DZN100-12-502

1490

1890

840

960

880

4

ɸ38

ɸ57

ɸ32

1.5"

1.5"

2.5"

DZN125-12-602

1860

2260

840

960

880

6

ɸ38

ɸ57

ɸ32

1.5"

1.5"

2.5"

DZN150-12-602

2200

2600

840

960

880

6

ɸ38

ɸ57

ɸ32

1.5"

1.5"

2.5"

DZN175-12-702

2200

2600

840

1100

880

6

ɸ38

ɸ57

ɸ32

1.5"

1.5"

2.5"

DZN200-12-702

2540

2940

840

1100

880

6

ɸ38

ɸ57

ɸ32

2"

2"

3"

DZN250-12-603

2940

3340

840

1170

880

8

ɸ38

ɸ57

ɸ42

2"

2"

3"

DZN300-12-703

3260

3660

840

1240

880

8

ɸ57

ɸ76

ɸ42

2"

2"

3"

DZN350-12-703

3740

4140

840

1240

880

8

ɸ57

ɸ76

ɸ42

2"

2"

3"

DZN400-12-704

4340

4740

840

1240

880

10

ɸ57

ɸ76

ɸ42

3"

2.5"

4"

DZN450-12-704

4840

5240

840

1240

880

10

ɸ57

ɸ76

ɸ42

3"

2.5"

4"


Steel fin spacing 15mm / 12mm combination

Model

A

L

B

C

W

N

Hot ammonia frost

Water frost

D1

D2

D3

D5

D4

D5

DZN75-15/12-601

990

1390

840

1100

880

4

ɸ32

ɸ42

ɸ32

1.5"

1.5"

2.5"

DZN100-15/12-701

1340

1740

840

1100

880

4

ɸ38

ɸ57

ɸ32

1.5"

1.5"

2.5"

DZN150-15/12-602

2040

2440

840

1100

880

6

ɸ38

ɸ57

ɸ32

1.5"

1.5"

2.5"

DZN200-15/12-702

2340

2740

840

1240

880

6

ɸ38

ɸ57

ɸ32

2"

2"

3"

DZN250-15/12-702

2840

3240

840

1240

880

6

ɸ38

ɸ57

ɸ32

2"

2"

3"

DZN300-15/12-703

3440

3840

840

1240

880

8

ɸ57

ɸ76

ɸ42

2"

2"

3"

DZN350-15/12-703

4040

4440

840

1240

880

8

ɸ57

ɸ76

ɸ42

2"

2"

3"

DZN400-15/12-704

4640

5040

840

1240

880

10

ɸ57

ɸ76

ɸ42

3"

2.5"

4"

DZN450-15/12-704

5240

5640

840

1240

880

10

ɸ57

ɸ76

ɸ42

3"

2.5"

4"











Applicable to all types of high and low temperature cold storage, cooling room, freezing room, and long range of air supply.
