Absorption Chiller
Steam Absorption Chiller

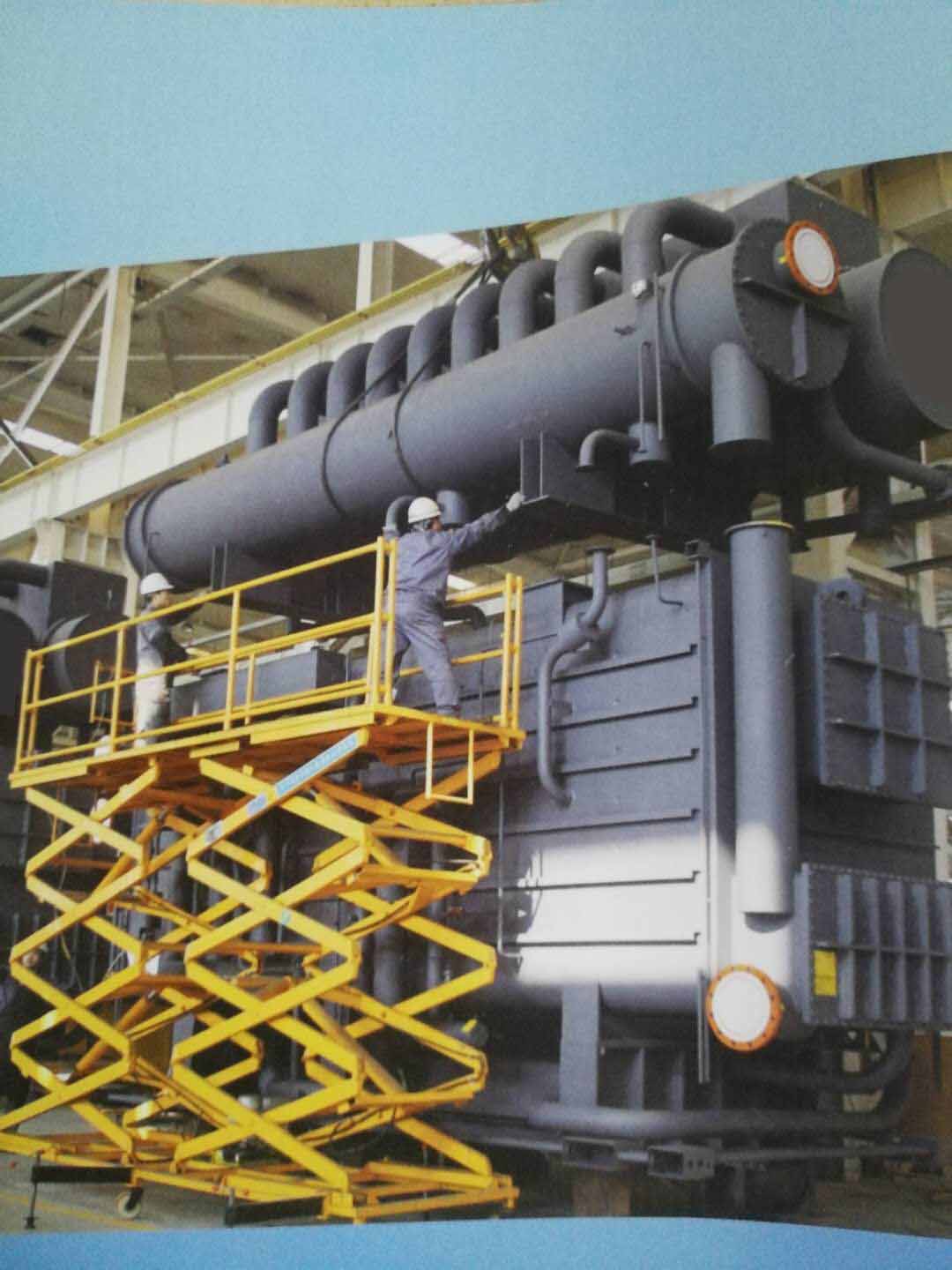

  • Steam Absorption Chiller

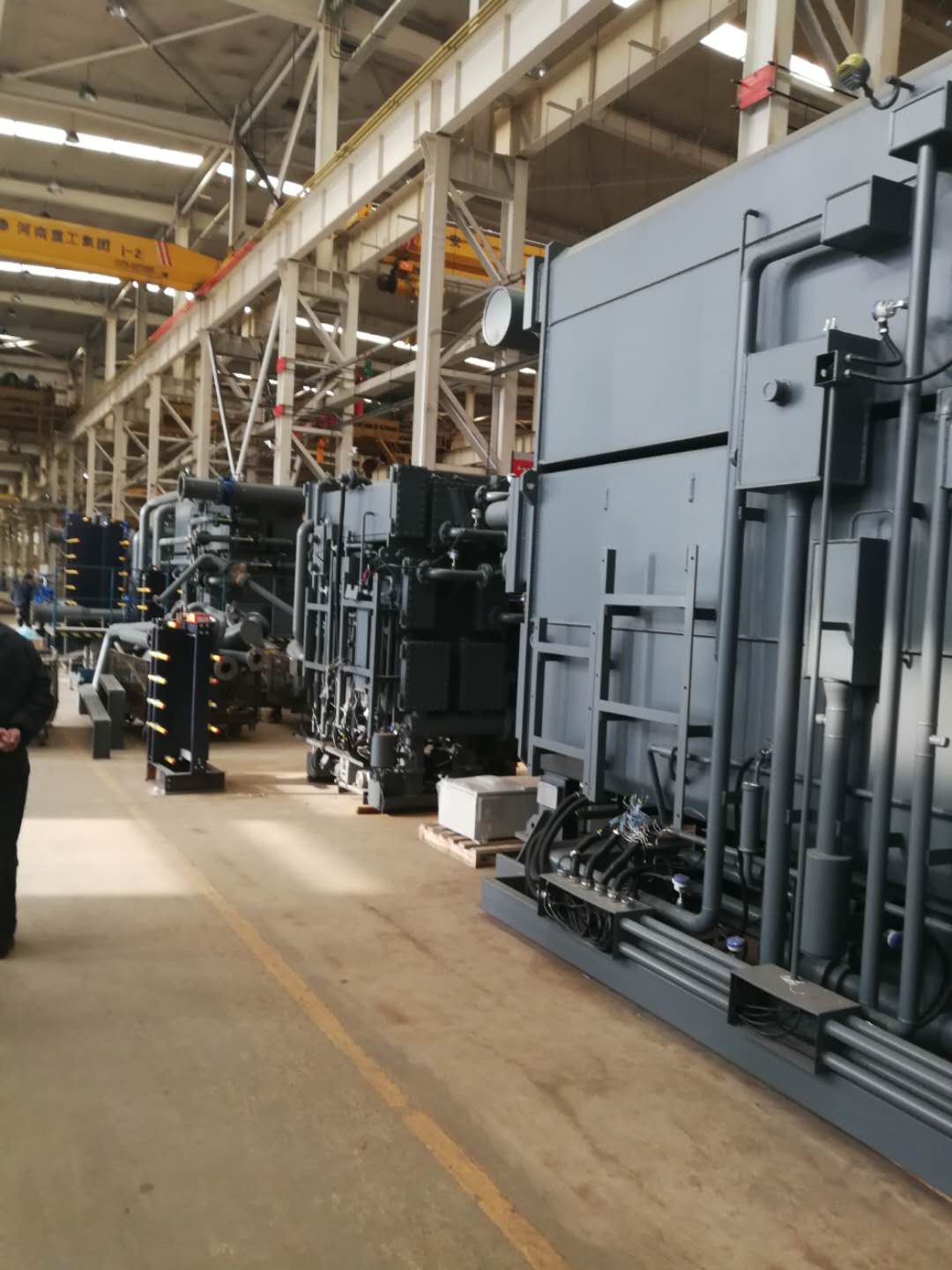

  • Steam Absorption Chiller

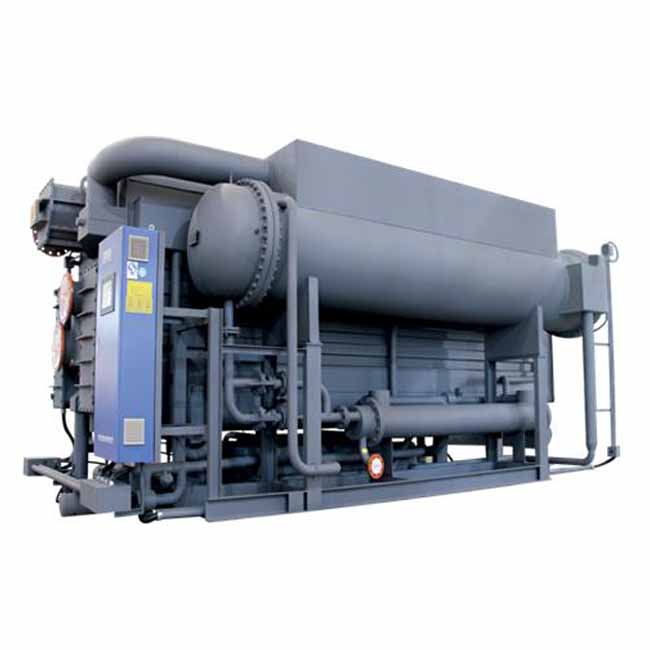

  • Steam Absorption Chiller
  • Steam Absorption Chiller

Steam Absorption Chiller

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference
Function: Cooling in summer
Driving heat source: 0.4~0.8MPa Saturated Vapor
Cooling capacity: 300,000 kcal/h~10,000,000 kcal/h
Application field: Coking, textile, machinery manufacturing, petroleum, chemical industry and other industrial fields; cold, heat and power combined supply system.
Product series: ZXC

Specifications 〖ZXC Series〗 Steam pressure 0.4MPa

Item;ΣZXC-000



010MC

012MC

015MC

018MC

021MC

025MC

030MC

033MC

036MC

040MC

045MC

050MC

056MC

063MC

066MC

070MC



Capability



Cooling

KW

264

317

396

475

554

659

791

870

950

1055

1187

1319

1477

1662

1741

1846

10⁴kcal/h

23

27

34

41

48

57

68

75

82

91

102

113

127

143

150

159

USRT

75

90

113

135

158

188

225

248

270

300

338

375

420

473

495

525



Cold water

Inlet temperature-
Outlet temperature

12.0→7.0

Flow

M³/h

45.4

54.4

68.0

81.6

95.3

113.4

136.1

149.7

163.3

181.4

204.1

226.8

254.0

285.8

299.4

317.5

Pressure loss

kPa

18.0

26.5

20.6

31.2

16.1

20.3

32.0

17.4

17.1

22.8

30.8

25.3

32.4

41.5

21.4

21.0

Water retention

0.11

0.13

0.16

0.18

0.21

0.28

0.32

0.35

0.37

0.41

0.45

0.59

0.65

0.71

0.78

0.79



Cooling water

Inlet temperature-
outlet temperature

32.0→37.5

flow

M³/h

70.2

84.2

105.3

126.4

147.4

175.5

210.6

231.7

252.7

280.8

315.9

351.0

393.1

442.3

463.3

491.4

Pressure loss

kPa

24.9

27.7

27.7

36.4

27.5

22.2

34.7

22.2

21.8

28.9

38.9

28.8

35.0

44.9

31.0

30.4

Water retention

0.29

0.33

0.40

0.48

0.52

0.81

0.90

1.02

1.05

1.13

1.22

1.68

1.85

1.99

2.10

2.14



Steam

Steam volume

kg/h

280

336

420

504

587

699

839

923

1007

1119

1259

1399

1567

1762

1846

1958

Inlet pressure

MPa(G)

0.4(saturation)

Condensate outlet temperature

85.0



Electric

Voltage • Phase • Frequency

V•Φ•Hz

380V•3Ph•50Hz

Total motor capacity

kW

1.7

1.7

1.7

2.8

2.8

2.8

2.8

3.6

3.6

3.8

3.8

5.6

8.1

8.1

8.1

8.1

Supply power  capacity

kVA

5.2

5.2

5.2

7.4

7.4

7.4

7.4

8.7

8.7

9

9

11.9

16.1

16.1

16.1

16.1

Supply power current

A

8.6

8.6

8.6

11.9

11.9

11.9

11.9

13.9

13.9

14.4

14.4

18.8

25.2

25.2

25.2

25.2



Connect pipe diameter

Cold water inlet

DN

100

125

125

150

150

200

200

200

200

200

200

200

250

250

250

250

Cooling water inlet and outlet

DN

125

125

125

150

150

200

200

250

250

250

250

250

300

300

300

300

Steam inlet

DN

50

50

50

65

65

65

65

65

65

65

100

100

100

100

100

100

Condensate outlet

DN

25

25

25

32

32

32

32

40

40

40

50

50

50

50

50

50



Equipment Specifications

Length(L)

mm

3096

3256

3732

4318

4923

3991

4538

5323

5323

5823

6423

4544

4863

5363

5917

5917

Width(W)

mm

1805

1805

1805

1805

1805

2329

2329

2320

2320

2320

2320

2912

2912

2912

2912

2912

Height(H)

mm

1885

1885

1885

1885

1885

2139

2139

2139

2139

2139

2139

2719

2719

2719

2719

2719

Operating Weight

t

5.2

5.4

6.0

7.4

8.2

10.2

11.5

12.5

13.2

14.6

15.8

18.9

20.5

22.2

23.3

24.5

Carrying weight

t

4.8

5.0

5.4

6.8

7.5

9.1

10.2

11.2

11.8

13.0

14.2

16.7

18.0

19.5

20.5

21.6



Specifications 〖ZXC Series〗 Steam pressure 0.6MPa

Item;ΣZXC-000



083MC

090MC

100MC

116MC

132MC

150MC

165MC

180MC

200MC

232MC

264MC

300MC

330MC



Capability



Cooling

KW

2189

2374

2638

3060

3482

3957

4352

4748

5275

6119

6963

7913

8704

10⁴kcal/h

188

204

227

263

300

340

374

408

454

526

599

680

748

USRT

623

675

750

870

990

1125

1238

1350

1500

1740

1980

2250

2475



Cold water

Inlet temperature-
Outlet temperature

12.0→7.0

Flow

M³/h

502.0

408.2

453.6

526.2

598.8

680.4

748.4

816.5

907.2

1052.4

1197.5

1360.8

1496.9

Pressure loss

kPa

51.4

37.7

36.9

20.2

26.2

24.7

30.6

17.6

24.8

37.9

26.0

38.0

50.0

Water retention

0.89

1.30

1.37

1.54

1.72

2.01

2.16

3.16

4.16

5.16

6.16

7.16

8.16



Cooling water

Inlet temperature-
outlet temperature

32.0→37.5

Flow

M³/h

582.7

631.8

702.0

814.3

926.6

1053.0

1158.3

1263.6

1404.0

1628.6

1853.3

2106.0

2316.6

Pressure loss

kPa

42.0

48.1

47.2

35.8

48.2

46.9

58.0

26.2

33.8

47.7

35.0

47.9

60.6

Water retention

2.46

3.40

3.54

3.99

4.34

5.03

5.35

6.35

7.35

8.35

9.35

10.35

11.35



Steam

Steam volume

kg/h

2.322

2.518

2.798

3.245

3.693

4.196

4.616

5.036

5.595

6.490

7.385

8.393

9.232

Inlet pressure

MPa(G)

0.4(saturation)

Condensate outlet temperature

85.0



Electric

Voltage • Phase • Frequency

V•Φ•Hz

380V•3Ph•50Hz

Total motor capacity

kW

8.1

9.7

9.7

9.7

11.6

13.4

13.4

15.3

18.1

18.1

23.5

23.5

28.2

Supply power capacity

kVA

16.1

20.6

20.6

20.6

24.2

27.1

27.1

31.7

35.3

35.3

49.8

49.8

55.3

Supply power current

A

25.2

32

32

32

37.4

41.8

41.8

49.1

61.2

61.2

76.9

76.9

89.3



Connect pipe diameter

Cold water inlet

DN

250

300

300

300

350

400

400

400

450

450

500

500

600

Cooling water inlet and outlet

DN

350

350

350

400

400

450

450

450

500

600

600

600

600

Steam inlet

DN

125

125

125

125

125

150

150

150

200

200

200

200

200

Condensate outlet

DN

65

65

65

65

65

65

65

65

80

80

80

80

80



Equipment Specifications

Length(L)

mm

6738

6068

6068

6968

7768

7618

8218

8402

9302

10505

9415

10575

11475

Width(W)

mm

2912

3620

3620

3620

3620

3821

3521

4180

4180

4180

4375

4375

4375

Height(H)

mm

2719

3246

3246

3246

3246

3631

3631

4134

4134

4134

4774

4774

4774

Operating Weight

t

27.9

33.4

35.2

40.1

45.5

50.0

53.4

59.8

66.4

77.1

87.7

99.6

109.6

Carrying weight

t

24.5

28.8

30.3

34.6

39.5

43.0

45.9

51.3

57.0

66.1

75.3

85.5

94.1


Note:
1. The performance tolerance and the coefficient of cold water and cooling water fouling are based on GB / T 18431 (the latest version).
2. The operating range is 10 ~ 100%.
3. When the steam supply pressure exceeds the rated pressure of 0.4MPa, a pressure reducing valve should be installed.
4. When the superheat of the supplied steam exceeds 10℃, a cooling device should be installed.
5. The maximum operating pressure of cold water and cooling water system is 0.4MPa (Gauge), the maximum operating pressure of steam system is 0.4MPa (Gauge)
6. During the initial start-up process, when the cooling water temperature is not lower than 15℃, it can be safely started.
7. The minimum cooling water temperature can correspond to 10℃. (Optional)
8. The parameters in this table will be changed due to product improvement without prior notice.
Coking, textile, machinery manufacturing, petroleum, chemical industry and other industrial fields; cold, heat and power combined supply system

Country:China

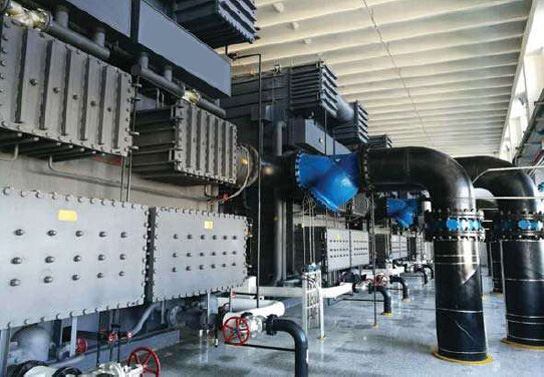

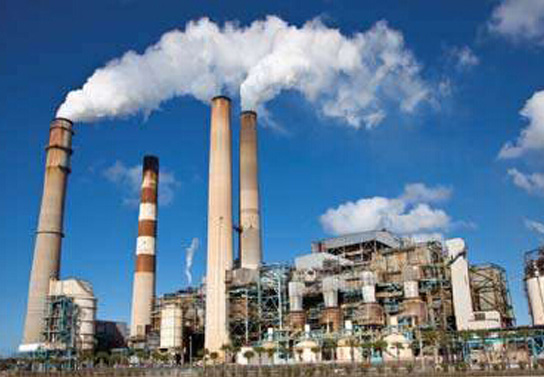

Application: thermal power plant
Product: steam type absorption heat pump unit
The thermal power company's circulating water waste heat utilization heat supply renovation project is an EPC general contracting project. Based on the operating parameters of the existing two 330MW generating units, it can recover all the circulating water residual heat of one generating unit, and the waste heat of 1 # 2 # Water, driving steam, heating network water, etc. can realize the complete switching operation of the two units, improving the heating guarantee rate and safety. The project invested 6 sets of 53.3MW steam-type heat pump units to achieve a heating area of 6.5 million square meters.

Country:China
Application: thermal power plant
Product: steam type absorption heat pump unit

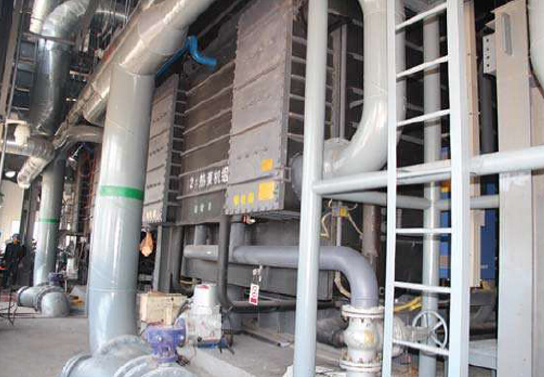

The project uses 3 34MW steam-type absorption heat pumps, powered by steam turbine extraction, to recover waste steam waste heat, forming a heating capacity of 2 million square meters

Country:China
Application: energy saving of epoxy acetylene and ethylene glycol plant / capacity expansion of epoxy acetylene
Product: hot water type chiller
Cooling capacity: 12, 310kW
Cooling water: large circulating water system
Surplus hot water: process hot water
