Cold Room Condensing Unit

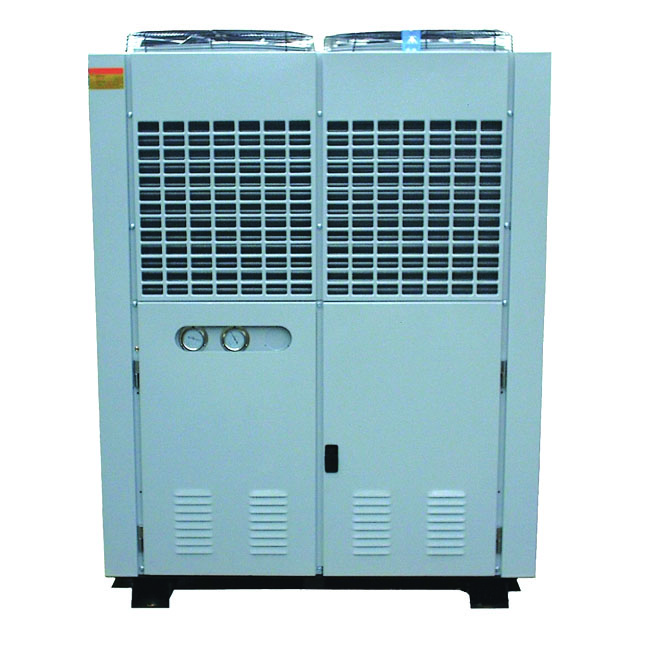

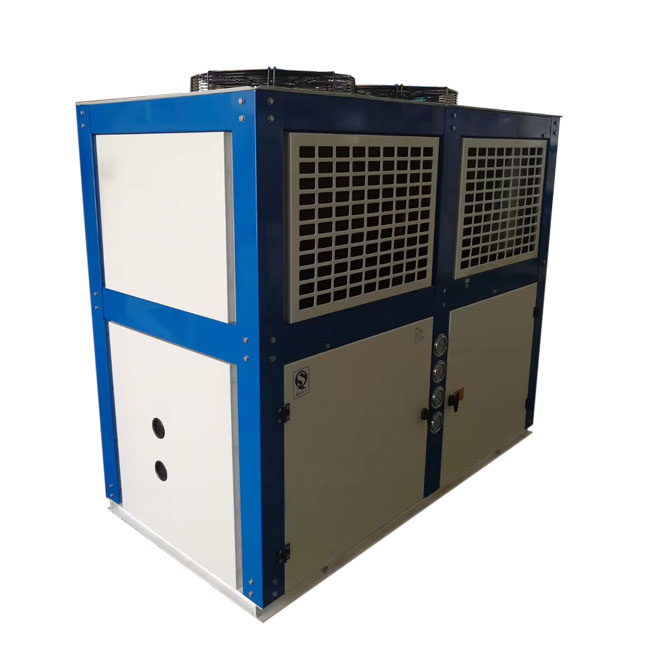

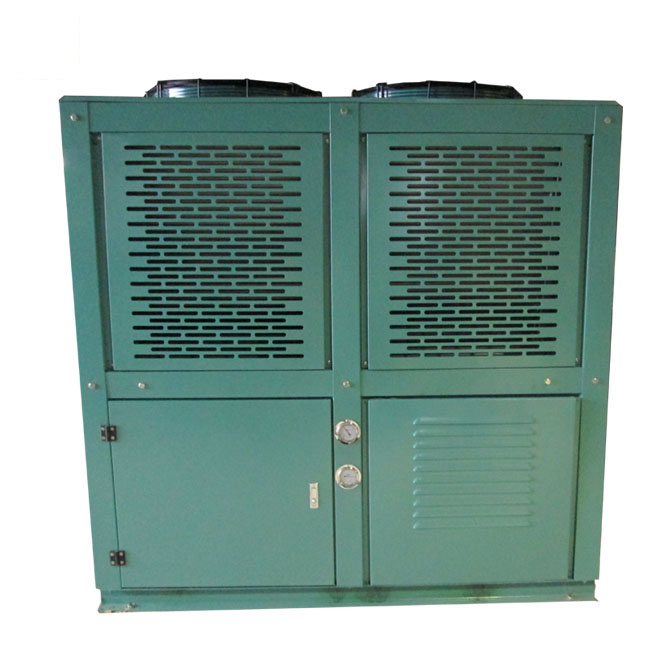

V Cold Storage Condensing Unit/Refrigeration Condensing Unit
  • V Cold Storage Condensing Unit/Refrigeration Condensing Unit
  • V Cold Storage Condensing Unit/Refrigeration Condensing Unit
  • V Cold Storage Condensing Unit/Refrigeration Condensing Unit
  • V Cold Storage Condensing Unit/Refrigeration Condensing Unit

V Cold Storage Condensing Unit/Refrigeration Condensing Unit

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference
1. Application range: food processing, logisitc center, meat processing center, chain restruant, medicine stores, seeds processing store, medical lab, biological medicine store, dairy products processing, edible fungus breeding center, temperature range from -5℃ to -23℃

2. Reliable and integrated design, easy handling and installation with brand compressors and components

3. High efficiency inner grooved tube heat exchanger, removable door, easy for maintenance

4. Anti-vibration device for big units, optional parts of fan speed controller, low noise operation

5. Electro statically powder coated steel sheet casing


Box type U condensing unit parameter

Unit model

Compressor model

Power supply

Power

Refrigerant

Cooling capacity

Air condenser

Evaporating temperature(℃)

Connect pipe

Dimension

Mounting dimension

Weight

HP



W

Cooling area(m2)

Air flow(m3/h)

Fan Dia(mm)

Power(W)

-15

-20

-25

-30

-35

Inlet

Outlet

L

W

H

mm

kg

FUBZ-005/L

4DES-5

380/3P/50hz

5

R22

7284

55

1*8740

1*550

1*550

10800

8830

6880

5220

3820

1/1-8

1/2

990

753

857

950*530

113

FUBZ-008/L

4TES-9

8

R22

12333

70

2*3980

2*400

2*190

16490

12870

9890

7330

5160

1/3-8

5/8

1240

803

852

1200*580

195

FUBZ-010/L

4PES-12

10

R22

14722

80

2*4800

2*450

2*250

19665

19665

12075

9025

6508

1/3-8

5/8

1500

854

867

1460*630

210

FUBZ-012/L

4NES-14

12

R22

16796

100

2*6560

2*500

2*420

23950

23950

14590

10880

7730

1/3-8

5/8

1500

903

875

1460*680

215

FUBZ-015/L

4HE-18

15

R22

21250

120

2*6560

2*500

2*420

31000

31000

18700

13910

9860

1/5-8

3/4

1500

953

867

1460*730

261

FUBZ-020/L

4GE-23

20

R22

24565

140

2*6560

2*500

2*420

35650

35650

21650

16140

11490

1/3-8

3/4

1606

1003

1004

1566*780

280

FUBZ-025/L

6HE-28

25

R22

31535

170

2*6560

2*500

2*420

46550

46550

28100

20900

14810

2-1/8

3/4

1704

1053

1108

1664*830

326

FUBZ-030/L

6GE-34

30

R22

36380

179

2*10840

2*600

2*800

53500

53500

32500

24200

17240

2-1/8

7/8

1704

1053

1108

1664*830

344

Working condition: 1)storage temp≥23℃, testing is based on evaporating temp=-18℃, ambient temp=32℃, SH temp=32℃,SC=5℃

food processing, logistic center, meat processing center,chain restaurant, medicine stores, seeds processing store, medical lab, biological medicine store, dairy products processing, edible fungus breeding center, temperature range from -5 ℃ to -23℃.
