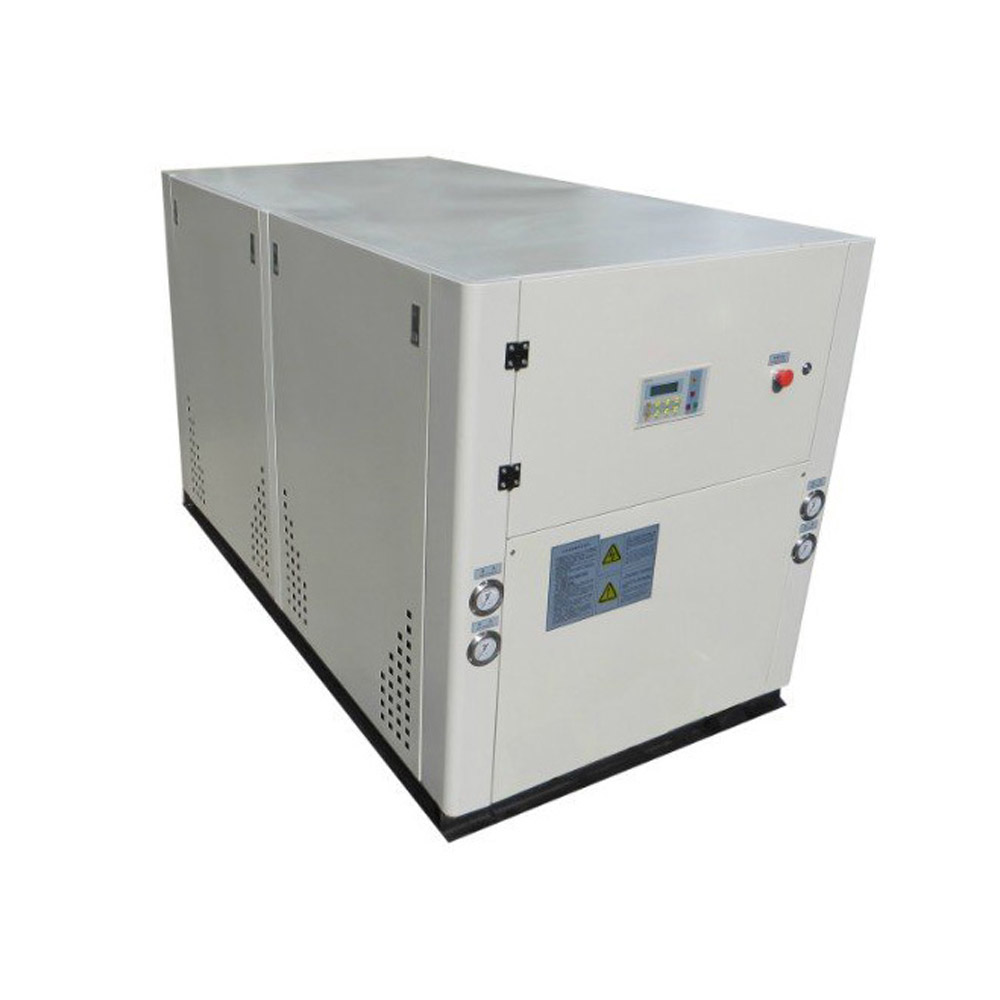

Shenglin Water Cooled Scroll Chiller Chinese Manufacturers
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
Products Features
1. Scroll hermetic compressor: international brand with free maintenance.
2. Electrical elements and refrigeration components are used from world-renowned brand.
3. Industrial and durable design, with stainless steel water tank and high-lift pumps.
4. Perfect breakdown protection: high and low pressure protection, air discharge protection, oil level protection, water flow protection, reverse and lack phase protection, chilled water anti-freezing protection, cooling water overheat protection.
Friendly choose to use environmentally R407C, R134A or R404A refrigerant ect.
Product options
1. Salt water evaporator
2. Special power supply
3. Remote communication connector
Technical parameter
Normal temperature type(7℃) technical parameter
SP- |
|||||||||||||||
Type |
05WSZ |
08WSZ |
10WSZ |
12WSZ |
15WDZ |
20WDZ |
25WDZ |
30WTZ |
36WTZ |
40WQZ |
50WQZ |
60WQZ |
72WQZ |
||
Nominal cooling capacity |
kW |
15.9 |
28.6 |
31.7 |
36.3 |
46.0 |
63.4 |
72.6 |
95.1 |
108.9 |
130.0 |
150.0 |
190.2 |
217.8 |
|
104 kcal/h |
1.4 |
2.5 |
2.7 |
3.1 |
4.0 |
5.5 |
6.2 |
8.2 |
9.4 |
11.2 |
12.9 |
16.4 |
18.7 |
||
Machine power kw |
3.8 |
5.7 |
7.2 |
8.4 |
11.2 |
14.5 |
16.2 |
21.6 |
24.2 |
28.9 |
33.3 |
42.9 |
48.0 |
||
Machine operating current A |
8.0 |
11.3 |
14.1 |
15.8 |
23.1 |
28.2 |
30.2 |
42.1 |
45.2 |
56.3 |
62.4 |
83.5 |
89.7 |
||
Compressor |
Quantity |
1 |
1 |
1 |
1 |
2 |
2 |
2 |
3 |
3 |
4 |
4 |
6 |
6 |
|
Cooling input power(kW) |
3.2 |
4.9 |
6.5 |
7.3 |
10.1 |
13.0 |
14.7 |
19.4 |
22.0 |
25.9 |
29.3 |
38.88 |
44.0 |
||
Rated Current(A) |
6.9 |
9.8 |
12.6 |
13.6 |
20.9 |
25.2 |
27.2 |
37.7 |
40.8 |
50.3 |
54.4 |
75.5 |
81.7 |
||
Evaporator |
Type |
High efficiency dry type shell and tube heat exchanger |
|||||||||||||
Flow(L/min) |
46 |
82 |
91 |
104 |
132 |
182 |
208 |
273 |
312 |
373 |
430 |
545 |
624 |
||
Interface size |
DN32 |
DN40 |
DN40 |
DN40 |
DN50 |
DN50 |
DN50 |
DN65 |
DN65 |
DN65 |
DN65 |
DN80 |
DN100 |
||
Condenser |
Type |
High efficiency shell and tube heat exchanger |
|||||||||||||
Flow(L/min) |
55 |
96 |
109 |
125 |
161 |
219 |
250 |
328 |
375 |
447 |
514 |
657 |
750 |
||
Interface size |
DN32 |
DN40 |
DN40 |
DN40 |
DN50 |
DN50 |
DN50 |
DN65 |
DN65 |
DN65 |
DN65 |
DN80 |
DN100 |
||
Chilled water pump |
Type |
High efficiency low noise centrifugal water pump |
|||||||||||||
Input power(kW) |
0.55 |
0.75 |
0.75 |
1.10 |
1.10 |
1.50 |
1.50 |
2.20 |
2.20 |
3.00 |
4.00 |
4.00 |
4.00 |
||
Interface size |
22 |
25 |
22 |
25 |
23 |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
||
Nominal tank volume(L) |
80 |
115 |
130 |
130 |
210 |
230 |
250 |
310 |
310 |
330 |
370 |
510 |
510 |
||
Overall dimensions |
Length(mm) |
1300 |
1300 |
1350 |
1350 |
1570 |
1900 |
1900 |
2300 |
2300 |
2800 |
2800 |
3600 |
3600 |
|
Width(mm) |
750 |
850 |
850 |
850 |
10001 |
1100 |
1100 |
1300 |
1300 |
1500 |
1500 |
1600 |
1600 |
||
Height(mm) |
1000 |
1000 |
1200 |
1200 |
1100 |
1300 |
1300 |
1580 |
1580 |
1550 |
1550 |
1600 |
1600 |
||
Weight |
Machine weight(kg) |
150 |
200 |
285 |
350 |
450 |
830 |
1050 |
1250 |
1300 |
1350 |
1550 |
1850 |
2150 |
|
Operating weight(kG) |
230 |
315 |
415 |
480 |
660 |
1060 |
1300 |
1560 |
1600 |
1680 |
1920 |
2250 |
2550 |
Cooling condition: Chilled water inlet/outlet temperature 12/7 ℃, cooling water inlet/outlet temperature 30℃/35℃
Our water cooled screw chillers, water cooled screw type low temperature unit, flooded type water hillers, air-cooled screw chiller, air-cooled, water-cooled box type chillers products have been widely used in chemical industry, chemical fiber, plastics, oil, food, as long as the industry, printing, electroplating, electronics and other industries
Recommend products:
Usually cooling tower offers chilled water to water cooled chiller, here we recommend our dry cooler to instead of cooling tower.
Structure Type | Model | Photo | Cooling cpacity (kw) | Air volume (m3/h) | Fan Diameter(mm) | Air discharge direction | Key documents |
---|---|---|---|---|---|---|---|
Plate Type | D1-005-1x350~D1-649-16x630 | 5~649 | 2828~263503 | 350~630 | Vertical | Brochure of D1 | |
Horizontal | |||||||
V type | D2-148-4X630~D2-921-20x630 | 148~921 | 76459~351663 | 630 | Vertical | Brochure of D2 | |
Plate Type | D3-042-1X800~D3-607-12X800 | 42~607 | 21454~227449 | 800 | Vertical | Brochure of D3 | |
V type | D4-176-4X800~D4-792-16X800 | 176~792 | 21454~227449 | 800 | Vertical |
Brochure of D4 |
