Shell And Tube Heat Exchanger

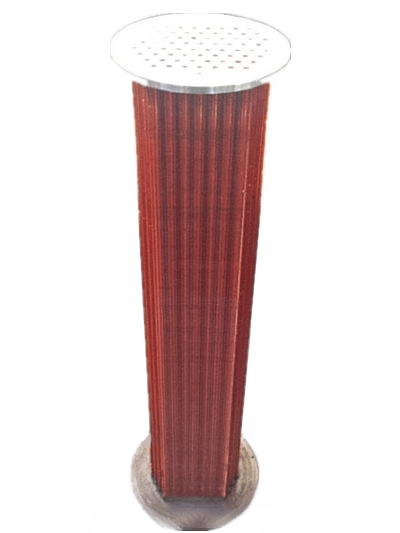

Aftercooler for Atlas ZH 7000 and ZH1000
In case you do not find the type or model in the website
We can customized according to your request.
Contact Now
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
1) Used as aftercooler for Atlas air compressor.
2) Copper tubes copper fins and stainless steel shell.
3) The tube was tested by 1.62MPa pressure to make sure the tube is strong and not leakage .
4) The shell was tested by 0.5Mpa water pressure to make sure the water system not leakage .
5) ASME certificated.
2) Copper tubes copper fins and stainless steel shell.
3) The tube was tested by 1.62MPa pressure to make sure the tube is strong and not leakage .
4) The shell was tested by 0.5Mpa water pressure to make sure the water system not leakage .
5) ASME certificated.
Work Condition:
1)Refrigerant side(In the tube): R22,R134a,R407c,R410a etc.
2)Water side (Between the tube and shell):Nature water, fresh water, sea water or other liquid .
Material:
1)Heat transfer Tube: Copper tube,Al-brass,cupro-nickel
2)Shell: Carbon steel/stainless steel .
Main specifications
1)Refrigerant side(In the tube): R22,R134a,R407c,R410a etc.
2)Water side (Between the tube and shell):Nature water, fresh water, sea water or other liquid .
Material:
1)Heat transfer Tube: Copper tube,Al-brass,cupro-nickel
2)Shell: Carbon steel/stainless steel .
Main specifications
Design pressure | 100mpa max. |
Design temperature | 1050℃ max. |
Diameter of shell | 3000mm max. |
Heat exchange area/set | 6000 square meter max. |
Diameter of heat exchanger tube | 10-70mm |
Length of heat exchanger tube | 100-20000mm |
Type of heat exchanger tube |
1) arc-tube 2) spiral-tube |
Baffling element |
1) segment baffle plate 2) circle baffle plate 3) vortex baffle plate 4) rod-baffle |
Main material |
1) mild steel 2) low alloy steel 3) stainless steel 4) copper(for tube) 5) titanium (for tube) |
Application
This is used as an aftercooler for Atlas ZH7000/10000.
This is used as an aftercooler for Atlas ZH7000/10000.
