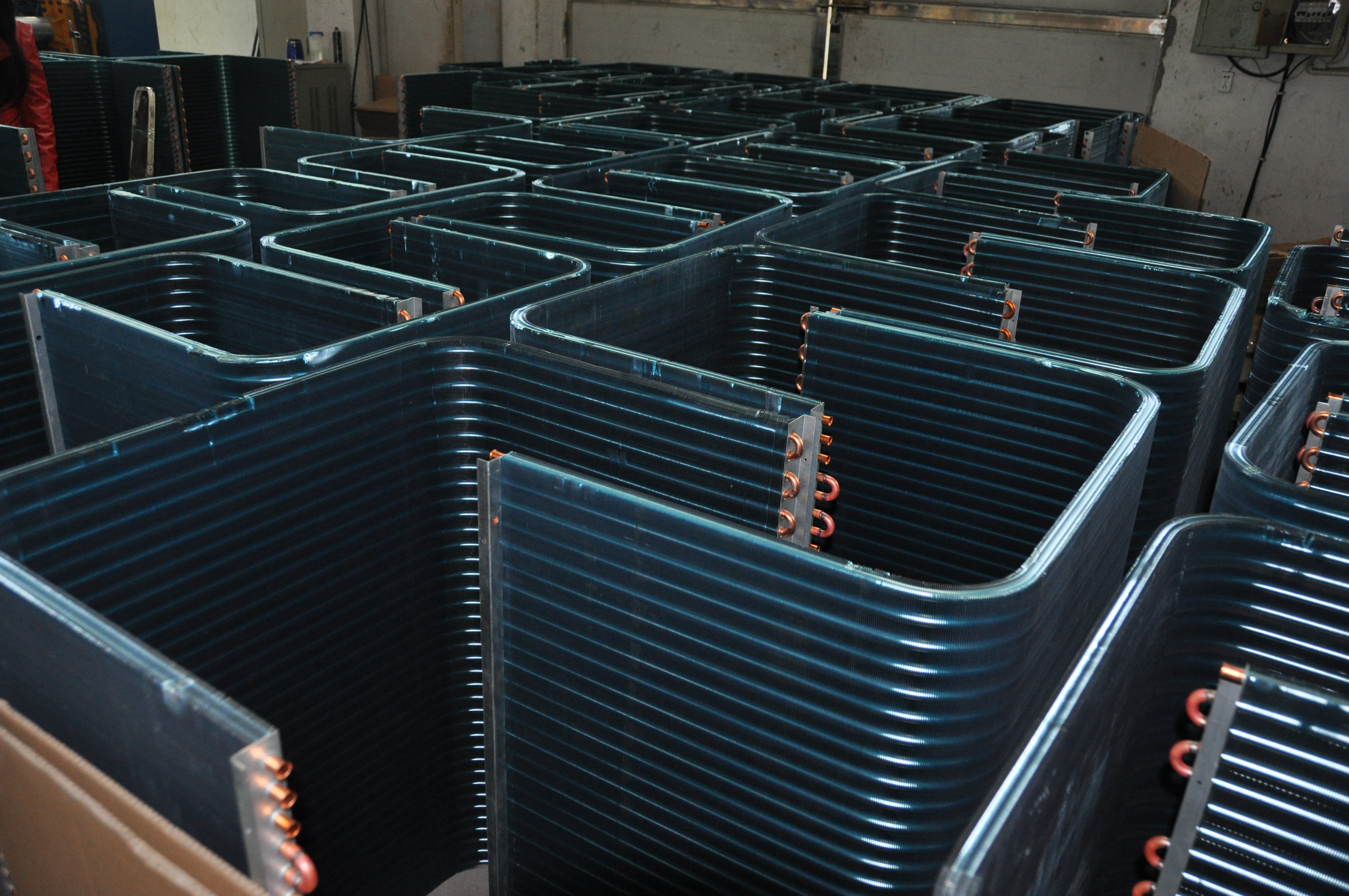

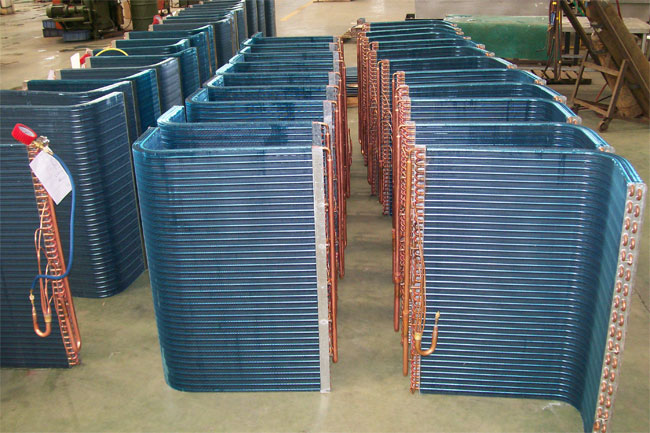

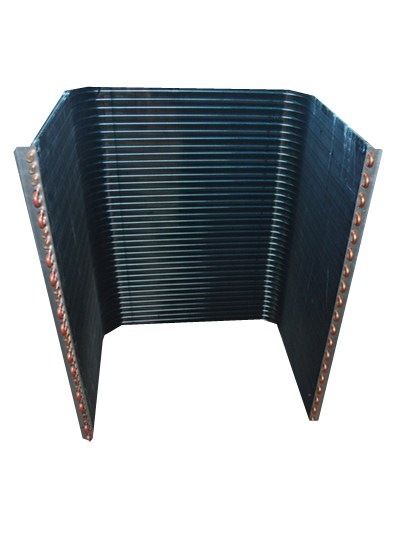

Fin Condenser
Condenser Used For Fan Coil Unit
In case you do not find the type or model in the website
We can customized according to your request.
Contact Now
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
Specifications
1. Condenser use for FCU
2. Customerized
3. Work Pressure:0.2~3.1MPa
4. Fin space:1.2~3.5mm
5. Tube Diameter:7, 7.94, 9.52, 12.7,15.88 etc.
Product Features:
1 Material: copper, aluminium, galvanized, Stainless steel plate.
2 Copper pipe: diameterΦ7, Φ7.94, Φ9.52, Φ12.7, Φ15.8mm, etc. inner grooved or smooth tube.
3 Aluminium foil: hydrophilic or bare
4 Fin type: louver fin, flat fin, corrugated fin
5 Pitch of fins: can be adjusted between 1.8-5.8mm
6 Pitch of holes and pitch of rows: 25x21.65mm, 25.4x22mm, 21x12.7mm, 19.5x12.7mm, 31.75x27.5mm, equilateral triangle arrangement.
7 Suitable for R134a, R22, R404a, R407c refrigerant and so on.
Our Advantages:
1) Professional manufacturer, ROHS, BV, SGS, CE
2) More than 10 years’ experiences of manufacturing. Cooperate with many famous brands: Midea, Gree, TCL, LG, Samsung, Hitachi, Panasonic etc.
3) Experienced technical staff. We have senior engineers and technicians more than 20 people with many years of experiences.
4) Three- step Quality control. Inspect the raw material, unfinished products and finished products.
5) Our products can be customized. We can produce for clients according to the sample or drawings.
6) Very competitive price with high quality products and perfect delivery date.
1. Condenser use for FCU
2. Customerized
3. Work Pressure:0.2~3.1MPa
4. Fin space:1.2~3.5mm
5. Tube Diameter:7, 7.94, 9.52, 12.7,15.88 etc.
Product Features:
1 Material: copper, aluminium, galvanized, Stainless steel plate.
2 Copper pipe: diameterΦ7, Φ7.94, Φ9.52, Φ12.7, Φ15.8mm, etc. inner grooved or smooth tube.
3 Aluminium foil: hydrophilic or bare
4 Fin type: louver fin, flat fin, corrugated fin
5 Pitch of fins: can be adjusted between 1.8-5.8mm
6 Pitch of holes and pitch of rows: 25x21.65mm, 25.4x22mm, 21x12.7mm, 19.5x12.7mm, 31.75x27.5mm, equilateral triangle arrangement.
7 Suitable for R134a, R22, R404a, R407c refrigerant and so on.
Our Advantages:
1) Professional manufacturer, ROHS, BV, SGS, CE
2) More than 10 years’ experiences of manufacturing. Cooperate with many famous brands: Midea, Gree, TCL, LG, Samsung, Hitachi, Panasonic etc.
3) Experienced technical staff. We have senior engineers and technicians more than 20 people with many years of experiences.
4) Three- step Quality control. Inspect the raw material, unfinished products and finished products.
5) Our products can be customized. We can produce for clients according to the sample or drawings.
6) Very competitive price with high quality products and perfect delivery date.
Fin Type |
Copper Tube O.D. (mm) |
Row Space (mm) |
Hole Space (mm) |
Fin Thickness (mm) |
Fin Space(mm) | |||||
Flat fin |
Sine wave with blade fin |
Smooth sine wave fin |
Window fin | Sesamoid fin | ||||||
A | 7 | 12.7 | 21 | 0.105 | / | / | 1.3 | 1.3 | / | |
B | 7 | 13.2 | 17.6 | 0.105 | / | / | 1.3 | 1.3 | / | |
C | 7 | 12.7 | 20.4 | 0.105 | / | / | 1.3~1.8 | 1.3~1.8 | / | |
D | 7.94 | 15.88 | 25.4 | 0.105 | 1.8~3.0 | 1.8~3.0 | 1.8~3.0 | 1.8~3.0 | / | |
E | 7.94 | 19.05 | 22 | 0.105~0.13 | 1.4~3.0 | 1.4~3.0 | 1.4~3.0 | 1.4~3.0 | / | |
E | 9.52 | 22 | 25.4 | 0.105~0.15 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / | |
F | 9.52 | 22 | 25.4 | 0.18~0.4 | 3.5~6.35 | / | / | / | / | |
G | 9.52 | 21.65 | 25 | 0.105~0.18 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / | |
H | 9.52 | 21.65 | 25 | 0.15~0.24 | 3.2~6.35 | 3.2~6.35 | 3.2~6.35 | / | / | |
I | 12.75 | 27.5 | 31.75 | 0.115~0.15 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.6~3.2 | |
J | 15.88 | 33 | 38.1 | 0.115~0.15 | 1.5~4.0 | 1.5~4.0 | 1.5~4.0 | / | / | |
K | 15.88 | 34.64 | 40 | 0.115~0.15 | / | 2.6~3.5 | 2.6~3.5 | / | / |
Item | Condenser Type | Operation medium | Operation pressure (MPa) | Application |
1 |
Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin
|
Cold/hot water | 1.6 |
Used for combined air handling unit, fan coil etc air conditioning devices
|
2 |
Φ18/Φ20 Steel pipe winding with steel sheet
|
Steam | 0.2 |
Used for combined air handling unit, fan coil etc air conditioning devices
|
3 |
Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin
|
Brine | 1.6 |
Used for heat transfer in cold storage and all kinds of low temperature systems
|
4 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
|
Ethylene glycol | 1.6 |
Used of energy recovery and low temperature system devices
|
5 |
Φ16 Copper tube with aluminium fin
|
Ice mud | 1.6 |
Used for dry operation condition, fresh air dehumidification etc systems
|
6 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
|
R22 | 1.9 |
Used for industry and commerce air conditioning system
|
7 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
|
R407C | 1.9 |
Used for industry and commerce air conditioning system
|
8 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
|
R134a | 3.1 |
Used for vehicle and vessel etc transportation devices
|
1: Used in AHU(air handlign unit) |
2: Used in air source heat pump |
3: Used in FCU(fan coil unit) |
4: Used in ice maker |
|
|
|
|
5: Used in household split air conditioner |
6: Used in cabinet |
7: Used in air cooled chiller. |
8: Used in dehumidifier. |
|
|
|
|
|
|
|
|
9: Used in beauty laser equipment. |
10: Used in bus air conditioner. |
11: Used in air cooled condensing unit. |
12: Used in island counter or deep freezer |
|
|
|
|
