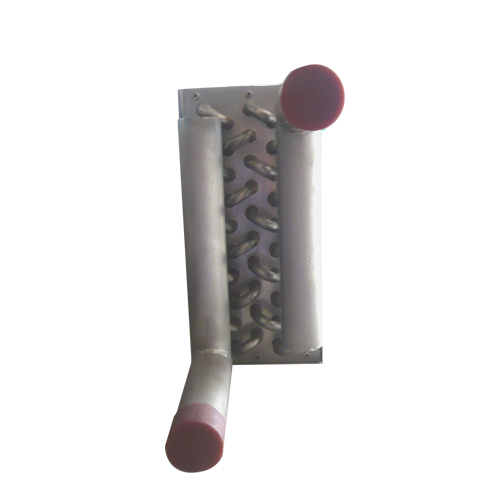

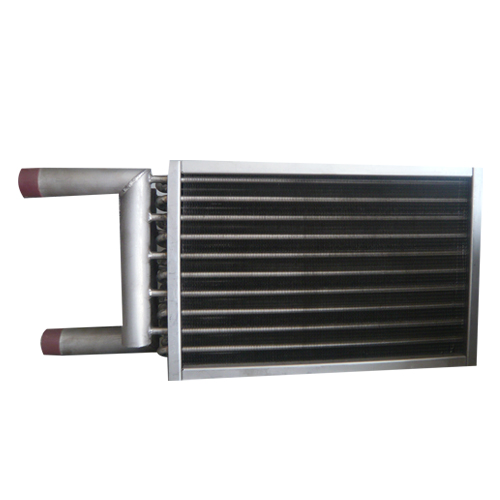

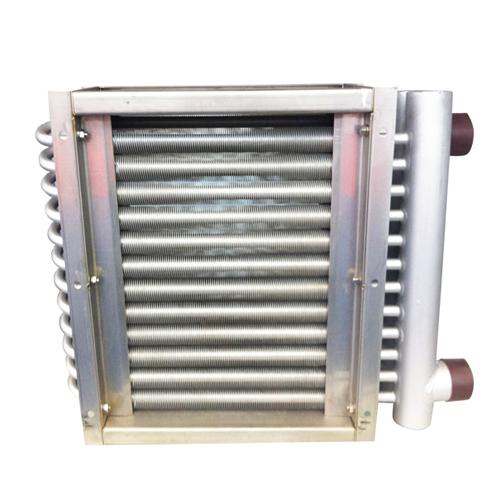

Stainless tube & aluminum fins evaporator
Scope:
Shanghai Shenglin has experience and expertise in Designing and manufacturing heat exchanger coils made with Stainless steel tubes.
The company has the ability of flexible design that enables the customer to get better cooling capacity while achieving maximum efficiency.
Using stainless steel tubes enables the usage of corrosive refrigerants or deionized water.
Applications:
Laser system radiators:
A - Cooling Esthetic lasers.
B - Cooling medical lasers.
C - Cooling welding lasers.
D- Cooling metal cutting lasers.
Fuel Cells:
A - Cooling Electrical convertors of wind power and Photovoltaic systems.
B- All heat exchanging needs in the Milk industry.
Abilities:
We can manufacture in a variety of tube diameters in 3/8" (9.53mm) and 7mm and others upon request.
3/8" tube is suitable for high capacities and high flow rates.
7mm tube is suitable for low capacities and low flow rates of the refrigerants. Which enables to get higher efficiency in a reduced volume.
Structure:
A - Upper assembly welded plate cartridge style to maintain the continuous flow while taking advantage of as small valium as possible.
B - Return bands system enabling the continuous flow.
Scope:
Shanghai Shenglin has experience and expertise in Designing and manufacturing heat exchanger coils made with Stainless steel tubes.
The company has the ability of flexible design that enables the customer to get better cooling capacity while achieving maximum efficiency.
Using stainless steel tubes enables the usage of corrosive refrigerants or deionized water.
Applications:
Laser system radiators:
A - Cooling Esthetic lasers.
B - Cooling medical lasers.
C - Cooling welding lasers.
D- Cooling metal cutting lasers.
Fuel Cells:
A - Cooling Electrical convertors of wind power and Photovoltaic systems.
B- All heat exchanging needs in the Milk industry.
Abilities:
We can manufacture in a variety of tube diameters in 3/8" (9.53mm) and 7mm and others upon request.
3/8" tube is suitable for high capacities and high flow rates.
7mm tube is suitable for low capacities and low flow rates of the refrigerants. Which enables to get higher efficiency in a reduced volume.
Structure:
A - Upper assembly welded plate cartridge style to maintain the continuous flow while taking advantage of as small valium as possible.
B - Return bands system enabling the continuous flow.
Item
|
Cooling coil Type
|
Operation medium
|
Operation pressure (MPa)
|
Application
|
1 | Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin | Cold/hot water | ≤1.6 | Used for combined air handling unit, fan coil etc air conditioning devices |
2 | Φ18/Φ20 Steel pipe winding with steel sheet | Steam | ≤0.2 | Used for combined air handling unit, fan coil etc air conditioning devices |
3 | Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin | Brine | ≤1.6 | Used for heat transfer in cold storage and all kinds of low temperature systems |
4 | Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin | Ethylene glycol | ≤1.6 | Used of energy recovery and low temperature system devices |
5 | Φ16 Copper tube with aluminium fin | Ice mud | ≤1.6 | Used for dry operation condition, fresh air dehumidification etc systems |
6 | Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin | R22 | ≤1.9 | Used for industry and commerce air conditioning system |
7 | Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin | R407C | ≤1.9 | Used for industry and commerce air conditioning system |
8 | Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin | R134a | ≤3.1 | Used for vehicle and vessel etc transportation devices |
Fin Type |
Copper Tube O.D. (mm) |
Row Space (mm) |
Hole Space (mm) |
Fin Thickness (mm) |
Fin Space(mm) | |||||
Flat fin |
Sine wave with blade fin |
Smooth sine wave fin |
Window fin | Sesamoid fin | ||||||
A | 7 | 12.7 | 21 | 0.105 | / | / | 1.3 | 1.3 | / | |
B | 7 | 13.2 | 17.6 | 0.105 | / | / | 1.3 | 1.3 | / | |
C | 7 | 12.7 | 20.4 | 0.105 | / | / | 1.3~1.8 | 1.3~1.8 | / | |
D | 7.94 | 15.88 | 25.4 | 0.105 | 1.8~3.0 | 1.8~3.0 | 1.8~3.0 | 1.8~3.0 | / | |
E | 7.94 | 19.05 | 22 | 0.105~0.13 | 1.4~3.0 | 1.4~3.0 | 1.4~3.0 | 1.4~3.0 | / | |
E | 9.52 | 22 | 25.4 | 0.105~0.15 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / | |
F | 9.52 | 22 | 25.4 | 0.18~0.4 | 3.5~6.35 | / | / | / | / | |
G | 9.52 | 21.65 | 25 | 0.105~0.18 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / | |
H | 9.52 | 21.65 | 25 | 0.15~0.24 | 3.2~6.35 | 3.2~6.35 | 3.2~6.35 | / | / | |
I | 12.75 | 27.5 | 31.75 | 0.115~0.15 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.6~3.2 | |
J | 15.88 | 33 | 38.1 | 0.115~0.15 | 1.5~4.0 | 1.5~4.0 | 1.5~4.0 | / | / | |
K | 15.88 | 34.64 | 40 | 0.115~0.15 | / | 2.6~3.5 | 2.6~3.5 | / | / |
